Touch Screen 500A 300mm Hydraulic Cylinder Seam Welding Machine

Product Categories
JINHUA (QINGDAO) HARDFACING TECHNOLOGY CO., LTD.
Contact Now

Touch Screen 500A 300mm Hydraulic Cylinder Seam Welding Machine

  • 1
  • 2

Brand Name : JINHUA

Model Number : JHC400

Place of Origin : WUXI

MOQ : 1 Unit

Price : USD+2000-50000+Unit

Payment Terms : T/T

Supply Ability : 30+Unit+Per Month

Delivery Time : 15-60 Days

Packaging Details : Wooden Box Package

Machine Type : Automatic Welding Machine for Hydraulic Cylinder

Condition : New

Material : Carbon Steel, Alloy Steel

After-Sales Service : Engineers available to service machinery overseas, Field installation, commissioning and training, Video technical support, Field maintenance and repair service

Warranty : 1 Year

Color : Yellow, Blue, Customized

Voltage : 220V/380V/400V, 220V/380V/415V/440V/customized, 220V50HZ1P, Optional, 380V or 220V/60HZ /3P (Also According To Your local voltage)

Usage : Weld Hydraulic Cylinder Flange

Industries : Cement, Steel, Mining, Power, Security, Agriculture, Recycling

Advantage : Automatic Welding

Contact Now

Automatic Welding Machine For Hydraulic Cylinder, Automation Seam Welding Machine

I. Machine Instruction

This equipment is composed of lathe bed, rotating head, cross member, manual bracket, pneumatic return sliding table, pneumatic tailstock, elevating mechanism of the torch, welding oscillator, adjusting mechanism of the torch, OTC 500A welding power source, water-cooled torch(equipped with cooling water tank) and electrical control system, etc. It has the features of easy-operation and fast.
1. Adjusting Mechanism of The Torch
This component is composed of mounting base, two-dimensional adjusting mechanism and electric elevating, etc. The torch can align the weld seam accurately by fine adjusting the X-direction and Y-direction adjusting mechanism manually. It can weld different diameter workpieces by adjusting the Z-direction adjusting mechanism. Welding oscillator is equipped on the adjusting mechanism.
2. Cross Member
The cross member is composed of crossbeam, crossbeam supporting seat, linear sliding rail, stepping motor, gear reducer, gear rack transmission, mounting base, connecting plate, drag chain component and detection device, etc.
3. Return Mechanism
The return mechanism is composed of air cylinder, base plate, linear sliding rail, sliding plate, detection device, etc.
4. Elevating Mechanism of The Torch
The elevating mechanism of the torch is composed of motor, base plate, linear sliding rail, sliding plate, detection device, etc. This component is installed on the sliding plate of the return mechanism and its maximum travel is 300mm.

II. Main Components List

No. Description Manufacturer
1 PLC Mitsubishi
2 Touch Screen Mitsubishi
3 Electrical Element Schneider / Siemens
4 Pneumatic Element AirTAC, Taiwan
5 Linear Guide Rail HIWIN, Taiwan
6 Inverter Taian, Taiwan
7 Main Spindle Reducer Tongli, China
8 Stepping Motor Mitsubishi
9 Movement Reducer Tongli, China
10 Oscillator Motor Mitsubishi
11 Welding Power Source OTC
12 Torch Binzel


III. Pictures

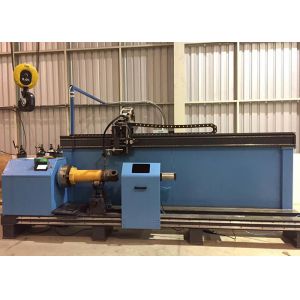

Touch Screen 500A 300mm Hydraulic Cylinder Seam Welding Machine

Touch Screen 500A 300mm Hydraulic Cylinder Seam Welding Machine

Touch Screen 500A 300mm Hydraulic Cylinder Seam Welding Machine

Touch Screen 500A 300mm Hydraulic Cylinder Seam Welding Machine
