Touch Screen 0.75kw 1500mm Portable Overlay Welding Machine

Brand Name : JINHUA

Model Number : JH-130

Place of Origin : CHINA

MOQ : 1 Unit

Price : Negotiable

Payment Terms : T/T

Supply Ability : 30+Unit+per Month

Delivery Time : 15-60 days

Packaging Details : Wooden Box Package

Material : Carbon Steel, Alloy Steel

Warranty : 12 months

Condition : New

Color : Customized

Overall Height : 216.5 in

Voltage : 220V/380V/400V, 220V/380V/415V/440V/customized, 220V50HZ1P, Optional, 380V Or 220V/60HZ /3P (Also According To Your Local Voltage)

Industries : Cement, Steel, Mining, Power, Security, Agriculture, Recycling

Applicable Industries : Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining

Contact Now

Portable Overlay Welding Machine, Portable Cladding Machine, Cladding Overlay Welding Machine

1. Production Description

JH-130 automatic overlay cladding welding equipment can realize interactive operation through using TECO touch screen, human-machine interface and wireless remote control. This hardfacing machine is highly-effective in real-time monitoring of operation process, production, welding time, and fault. The aluminum alloy trolley and arm are designed by adopting a specially-designed turnover mechanism, and the welding head adopts universal adjusting lever. When the angle and height position is adjusted, this hardfacing equipment can be quickly debugged and installed.

2. Specification

Product name Overlay Welding Machine
Effective transverse welding stroke 1500mm; Can be customized
Effective longitudinal welding stroke 3000mm; Can be customized
Welding speed 150-1500mm /min
Gantry gauge 3000mm
Cross slide trim trip (Electric) 60mm
Welding torch up and down stroke (Electric) 260mm
Swing speed 0-2400mm/min
Longitudinal servo motor power 0.75kw
Horizontal servo motor power 0.75kw
Power-driven planker speed up/down 200mm/min

3. Delivery

Touch Screen 0.75kw 1500mm Portable Overlay Welding Machine

Touch Screen 0.75kw 1500mm Portable Overlay Welding Machine


Product Tags:

1500mm Portable Cladding Machine



0.75kw Overlay Welding system



hardfacing overlay welding machine


China Touch Screen 0.75kw 1500mm Portable Overlay Welding Machine wholesale

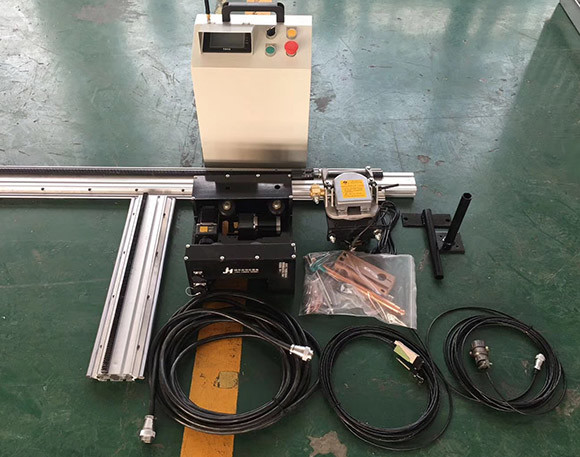

Touch Screen 0.75kw 1500mm Portable Overlay Welding Machine Images
